Monpile Offshore Platform Wind Tower Used Gantry Weld Manipulator With Twin Arc
Brief introduction:
Gantry type welding manipulator specially designed for offshore wind tower,monopile,foundation, jacket and so on large scale job out seam welding.
Description of gantry welding manipulator:
- Gantry welding manipulator is used to manipulate the welding kits. It is able to position the weld torch to required position for welding in a stable and secure manner.
- Mainly used by SAW welding method for high efficiency high quality welding.
- Depends on requirement, single arc single wire, dual arc dual wire or triple arc triple wire avaiable .
- Widly used in offshore wind tower industry for tube tower, jackt, monopile and so on job fabrication.
Main technical parameter:
| Platform height range from the ground | 4000mm-10500mm； |
| Lift speed: mm/min | 1800 mm/min |
| Travel speed:mm/min | 3000 mm/min |
| Platform length * width | 8500*3100 |
| Material | Assembly component |
| Heating treatment | Main components tempering treatment eliminating inner stress |
| Cable winding device | auto cable winding device |
| Load capacity | 2000kg |
Gantry welding manipulator feature:
- Platform lift up/down suitable for different diameter monopile/wind tower size.
- Motorized trolley at bottom driving the manipulator travel on the rail for different length job welding.
- Designed and robustly build to withstand rugged work environments.
- All vertical and horizontal guidings are precisely machined for smooth movement.
- Solid state inverter for variable speed of horizontal travel and travel carriage.
- Worm gearbox for vertical travel via AC motor, complete with brake for added safety.
- IP54 pendant control station using low voltage on the generous 6m cable.
- Anti-fall device and limit switches for all motions.
Offshore Wind Tower 1+1 Fit Up & YG Growing Line Anmimation Demonstration:
https://youtu.be/8c5CIgLRFYU

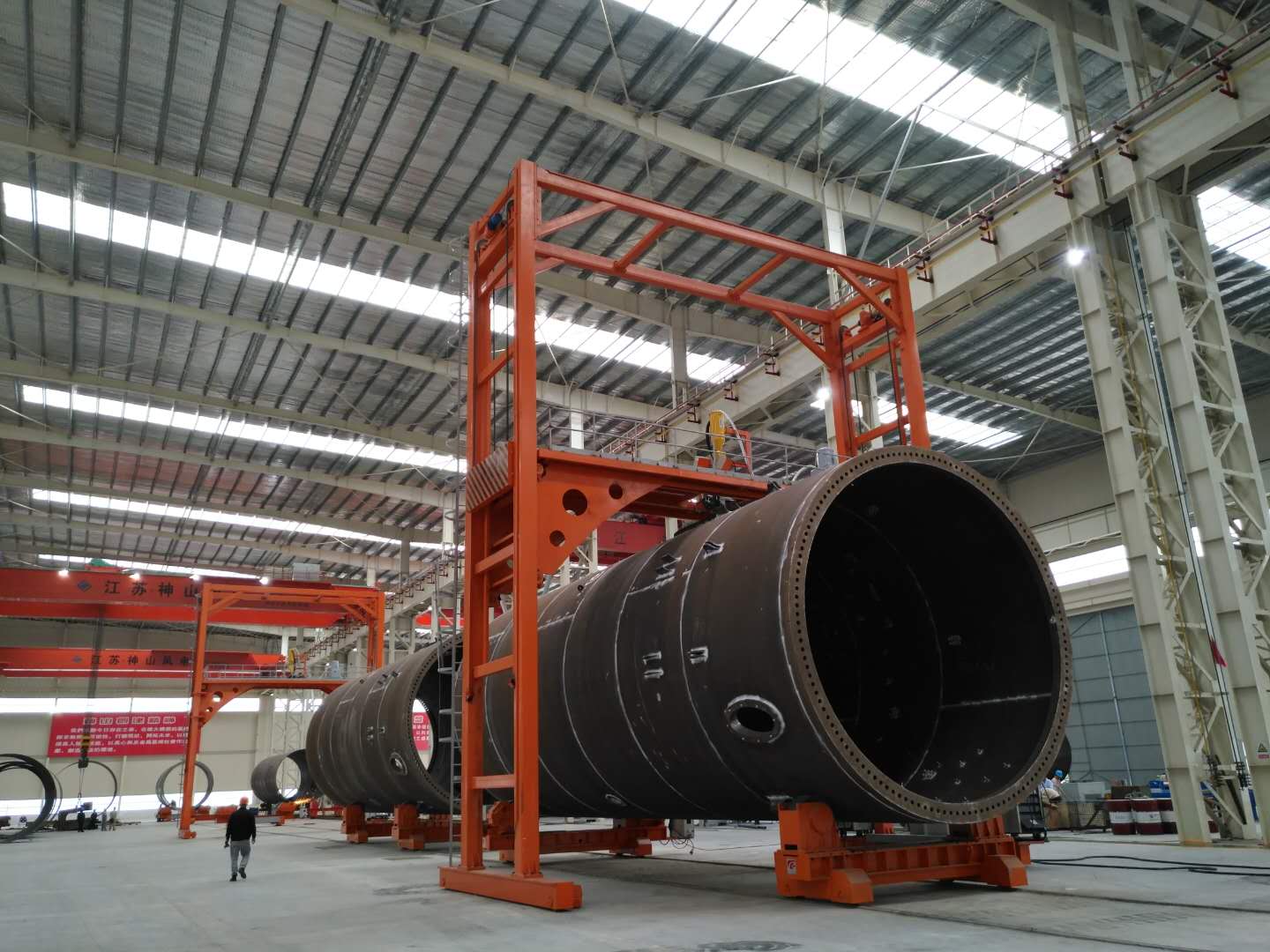

Working site:
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team,
who is good at design, develop & build special solution catering for your individual
requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading.
Depends on your location, combined transport by rail and sea is also an option.
Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During
this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available
freely covering the whole using life of the machine. Engineer service on user premises
is also available for necessary.
