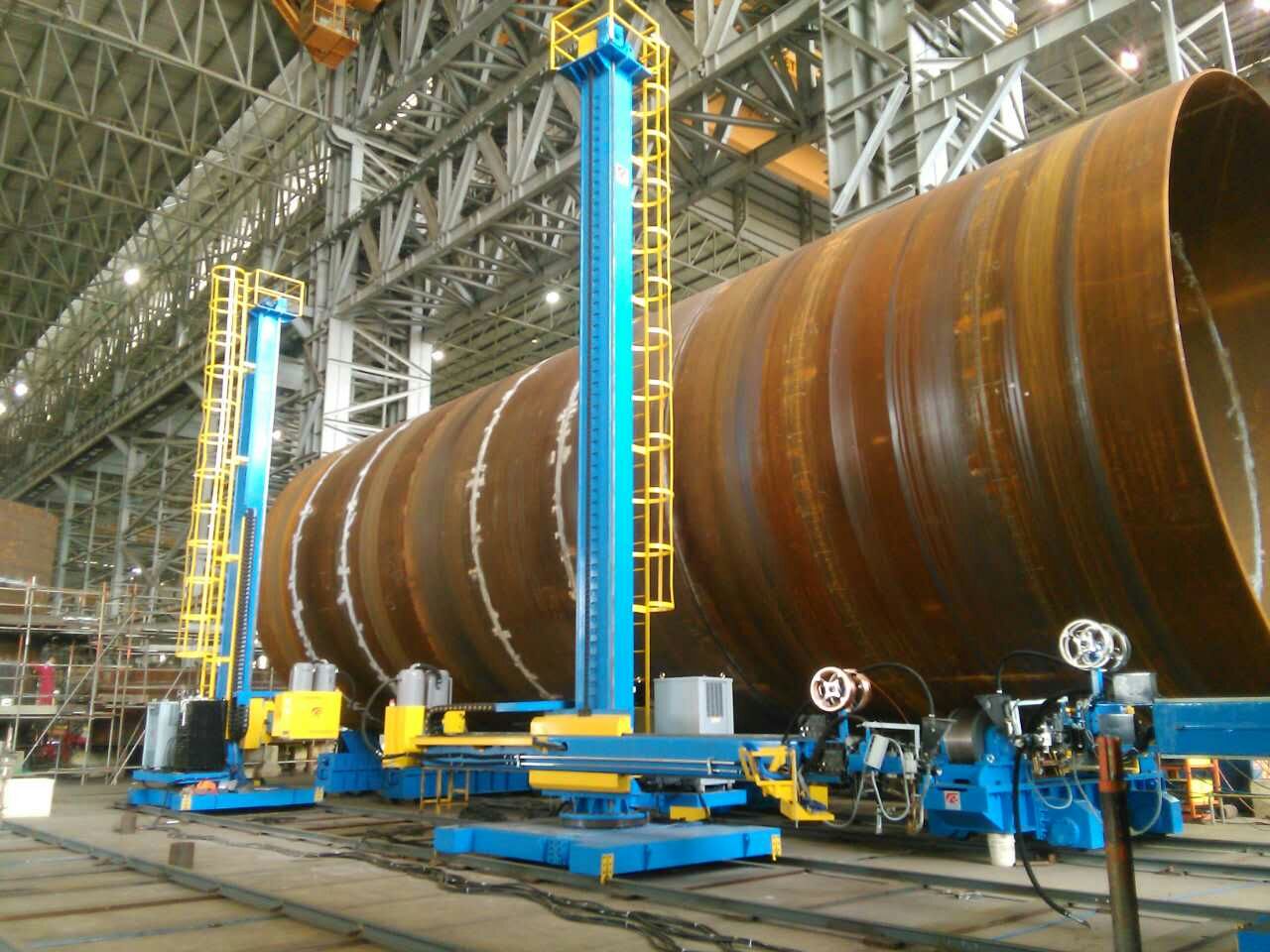

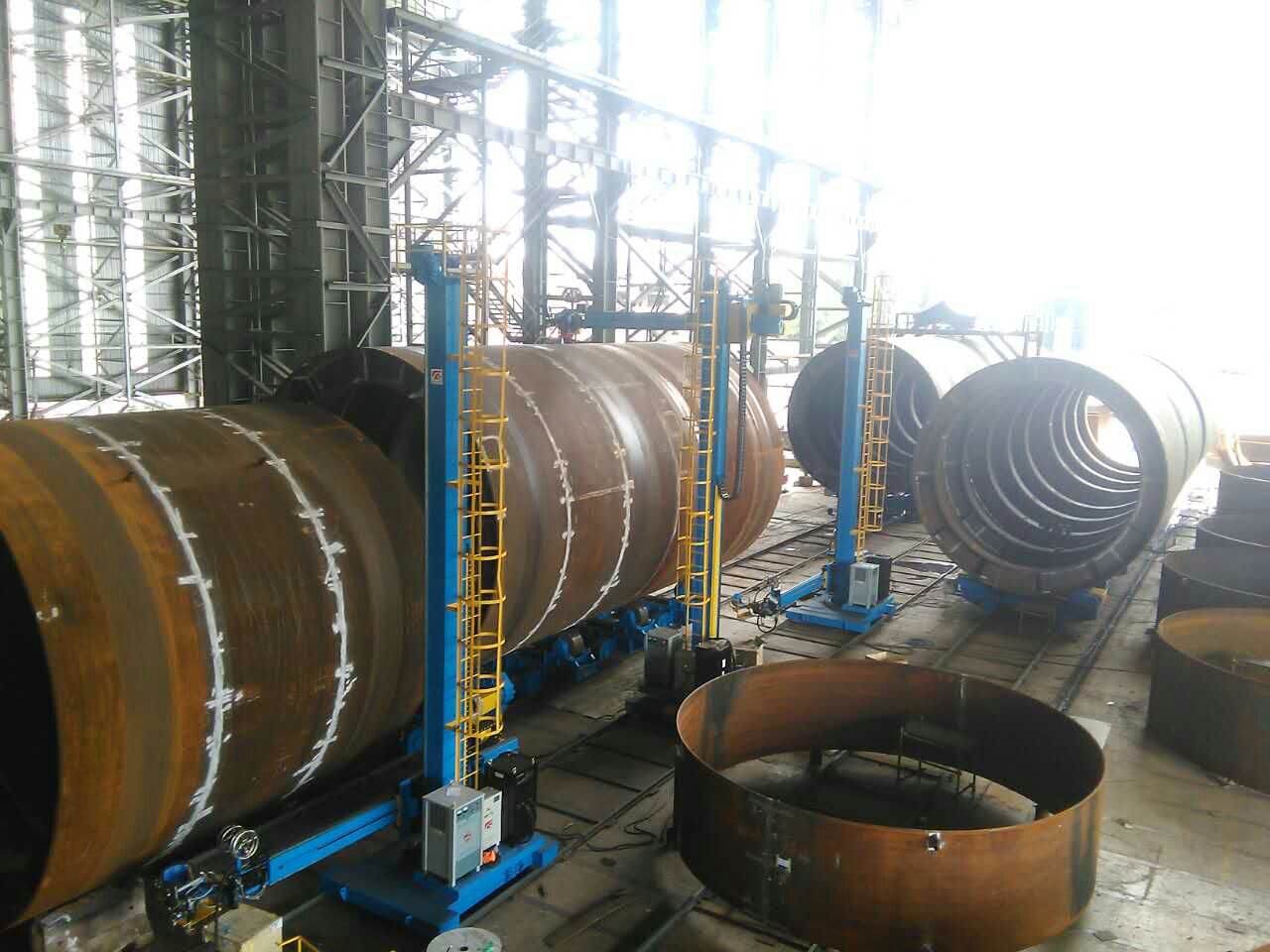

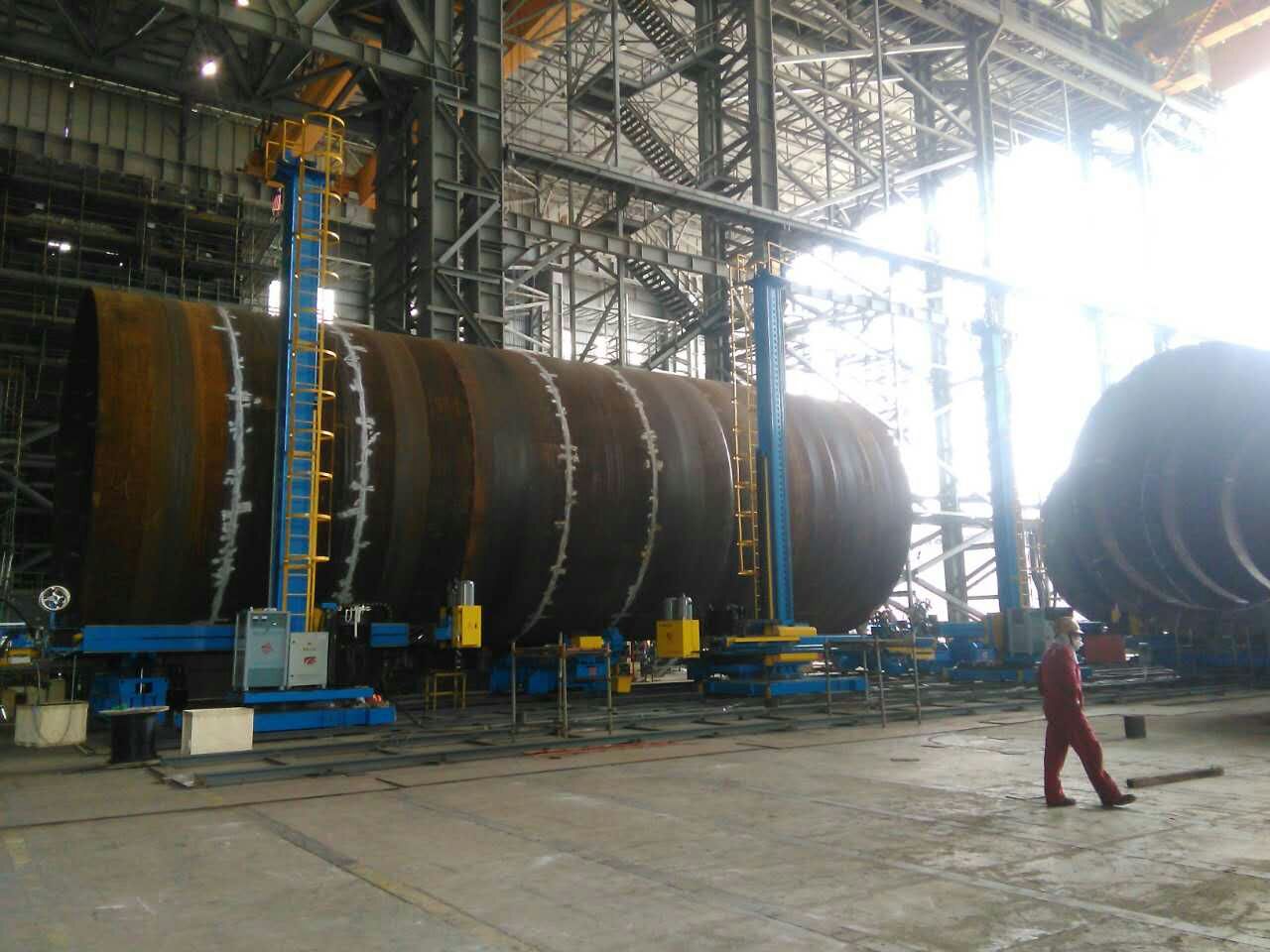

Tubular Pile Welding Column Boom Welding Manipulator With Manned Platform

Tubular Pile Used CE Welding Column Boom With Manned Platform

Brief introduction:

Heavy duty structure ensure the main structure with enough strength & rigidity for 8meter span. Manned platform installed at end of the boom for welding survillance.

Video link:

https://www.youtube.com/c/RonniewellAutomatedWeldingSolutionProvider

Description of welding column boom:

• Welding column booms are used to manipulate the welding kits. It is able to position the weld torch to required position for welding in a stable and secure manner.

• It is able to used for various kind of welding method, such as GTAW, PAW, GMAW, FCAW, SAW or YAG Laser, suitable for all kinds of welding power source.

• As extension, the standard boom can be used as a linear welding axis, as these weld processes may not required precise welding motion.

• Manual or powered mobile sub-based trolley can be included for varying length weldments and procedures.

• Welding booms are a versatile and rugged solution to obtain up to 8m of lift and reach to duplicate the function of a highly skilled welder.

Main technical parameter:

Welding column boom feature:

• Normally working with rotator, positioner etc device for automative welding work.

• Designed and robustly build to withstand rugged work environments.

• Smooth 360 degree lockable rotation.

• All vertical and horizontal guidings are precisely machined for smooth movement.

• Solid state inverter for variable speed of horizontal travel and travel carriage.

• Worm gearbox for vertical travel via AC motor, complete with brake for added safety.

• High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

• IP54 pendant control station using low voltage on the generous 6m cable.

• Anti-fall device and limit switches for all motions.

• It is the ideal choice for big welding job with heavy welding work load, such as wind tube tower fabrication, to effectively saving labor cost & decrease the welding job intensity.

Option:

• Welding oscillator;

• Welding seam tracker;

• Flux recovery & convery machine;

• Various welding power available;

Offshore Wind Tower Bridge Pile Automatic Welding Blue Print Video Link:

https://youtu.be/ylmbsIvRAic

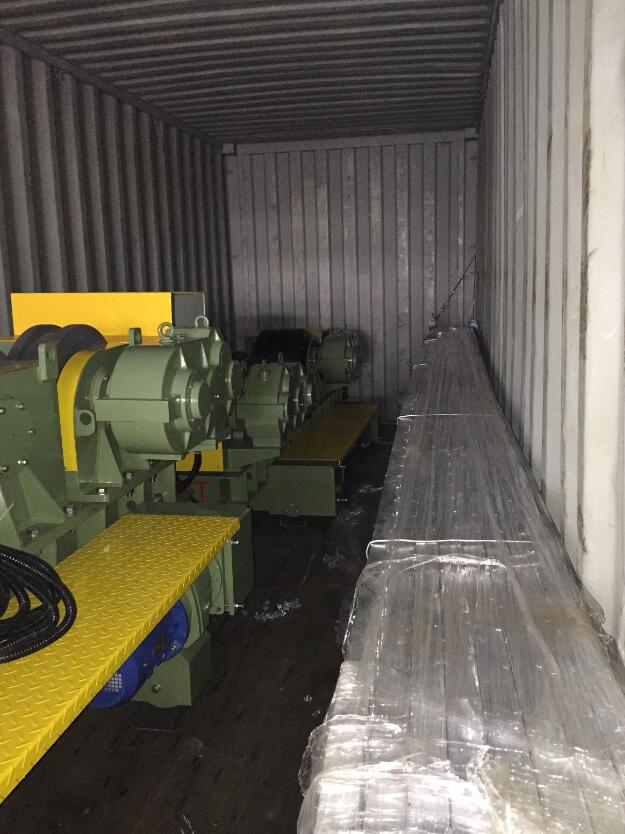

Delivery picture:

Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team,

who is good at design, develop & build special solution catering for your individual

requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading.

Depends on your location, combined transport by rail and sea is also an option.

Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During

this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available

freely covering the whole using life of the machine. Engineer service on user premises

is also available for necessary.

Product name:
automatic welding machine, welding boom, column boom welding boom, CaB, welding

column boom, automatic welding center, cross beam manipulator, welding column;

rotary welding positioner
