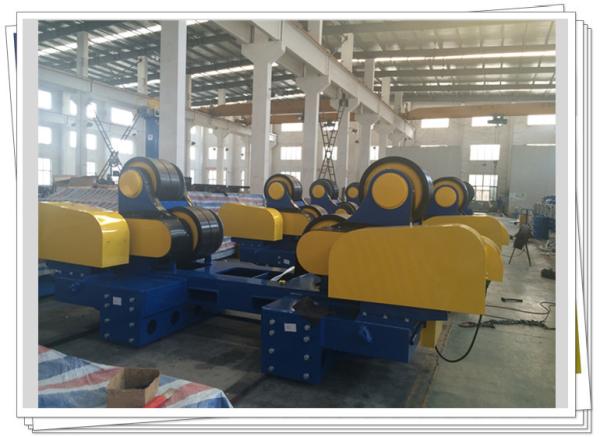

Surface Treatment Hybrid TSA Painting Blasting Rotator 200t Traveling SAR Turning Roll
Brief introduction:
Wind tower surface treatment SAR rotator suitable for TSA/Blasting/painting hybrid application
Work load limit 200t/pair(1power & 1idler) with motorized trolly traveling on the rail.
Description:
- Wind tower surface treatment hybrid rotator is composed by power rotator, idler rotator, control cabinet & wireless remote controller.
- Self aligning rotator(SAR) type with cradle structure auto fit for different size tower from 1000mm to 6500mm.
- Rubber wheels with groove for painting ring suitable for wind tower TSA/blasting/painting etc multi surface treatment procedure.
- All motion clearance with safety cover for blasting grit shooting protection.
- Anti explosive motor suitable for dust explosive surrounding.
- Double layer control cabinet for extra protection of electric control system.
- Wireless remote controller with effective control range no less than 100m.
Remote controller functions:
- Forward/stop/reverse
- Rotation speed
- Driving vehicle forward/stop/reverse
- Emergency-stop
Main technical parameters
| Type | Work load limit (t) | Job dia.range (mm) | Wheel diameter and width (mm) | Motor power (Kw) |
| HGZBP200 | 200 | Φ1000-6500 | Φ750×220x2pcs+groove | 2×5.5 |
*Subject to change without noticement. Please contact for parameter confirmation.
Feature:
- SAR type with cradle structure of 4pcs wheels per rotator, more balance loading increasing contact surface with work piece,decrease risk of surface deformation & protect the work piece surface
- Wireless remote controller allow the operator remote control the rotator wthin a range of 100m.
- Hybrid rotator suitable for whole wind tower surface treatment procedure including blasting/TSA/painting and so on.
- With motorized trolley mobile on the rail, the hybrid surface treatment rotator could take the wind tower go through all working procedure along the rail without unloading the tower.
- It decreasing the hosit/crane using, saving labor cost & highly boosting the work efficiency.
Advantage of Wind tower surface treatment hybrid rotator:
- The number of heavy lifts is reduced.
- The hybrid solution also means cost reduction comparing to buy 2 sets of rotators.
- Significant savings on operating costs are achieved when the hybrid solution is used throughout the production process.
- The section is placed on pur wheels or paint rings.

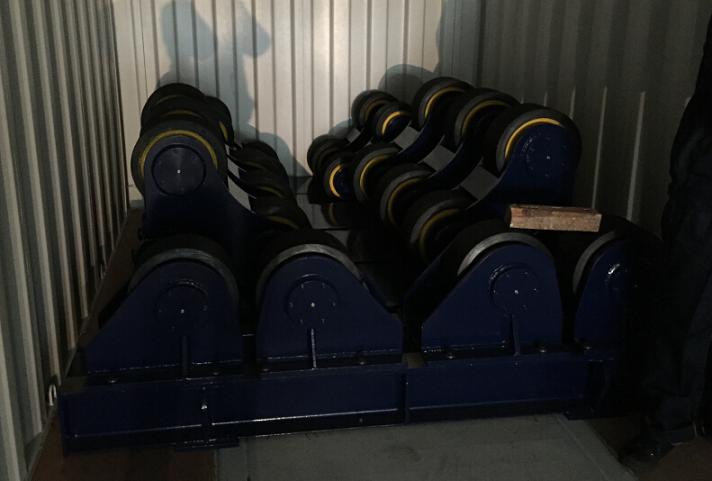

Delivery picture:
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
